TS-1197U
规格说明
工作温度： -30°C~+85°C 性能评级：50mA 12V DC 绝缘电阻： 最小100MΩ 100V DC 耐电压：250VAC，1分钟 接触电阻：最大100mΩ 寿命：100000次 力度： 180gf / 250gf / 130gf 行程：0.15+0.05mm
Hotline:
Detailed introduction

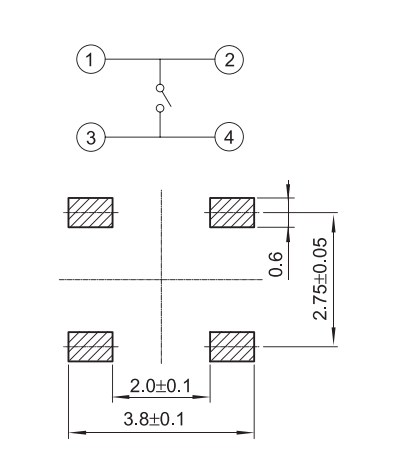

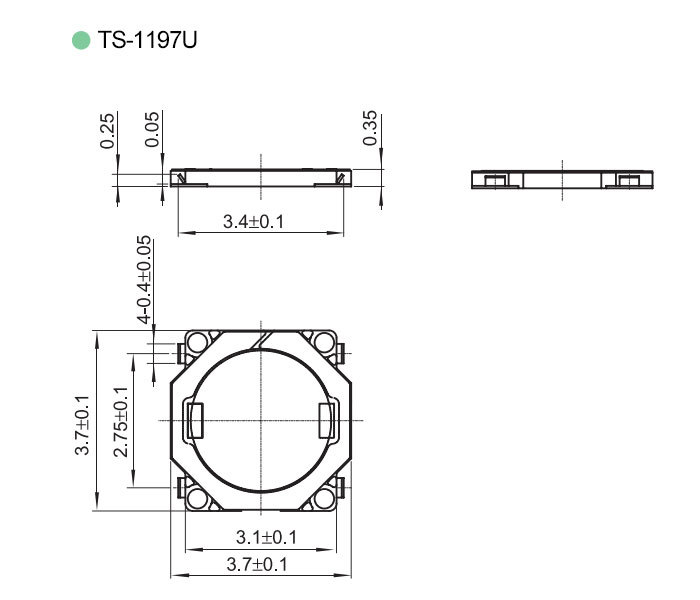

| 序号 | 尺寸图 | 电路图 |
| 1 |  |
 |
产品应用
暂无数据
