Multifunctional series
TS-1157M
规格说明
工作温度： -30°C~+85°C 性能评级：50mA 12V DC 绝缘电阻： 最小100MΩ 100V DC 耐电压：250VAC，1分钟 接触电阻：最大100mΩ 寿命：10000次 力度：100±40gf / 250±80gf 行程：0.3±0.1mm / 0.55±0.1mm
Hotline:
Detailed introduction

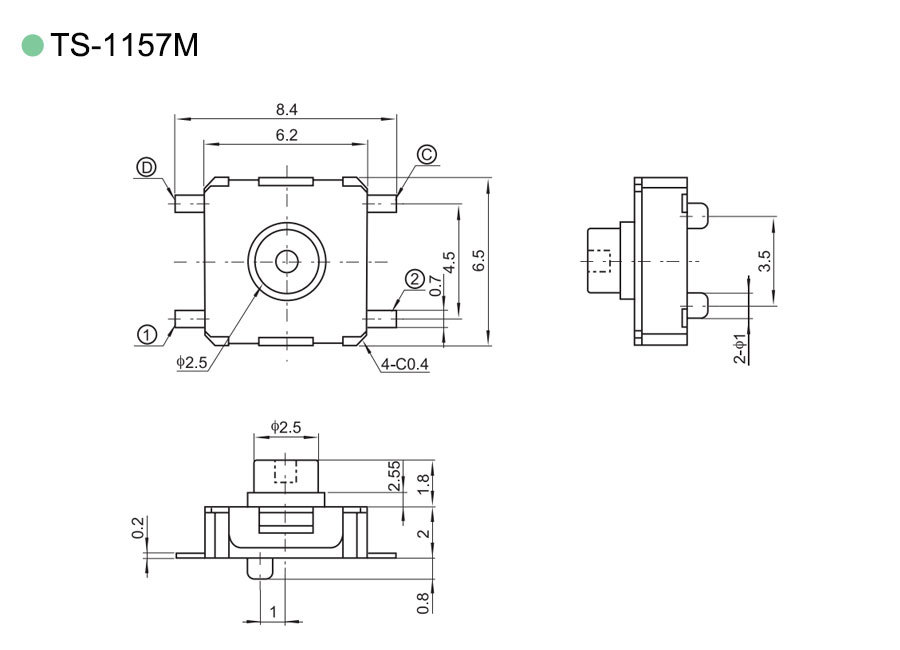

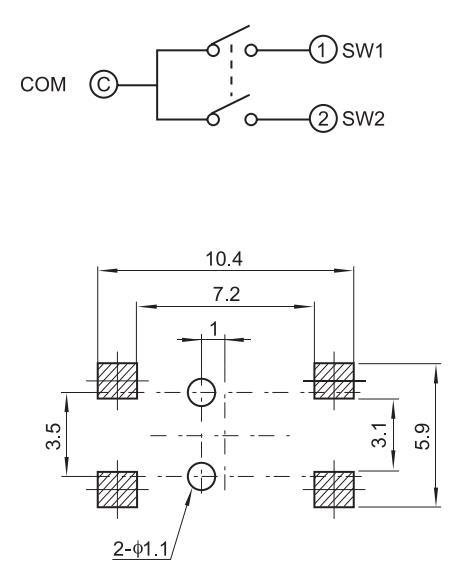

| 序号 | 尺寸图 | 电路图 |
| 1 |  |
 |
