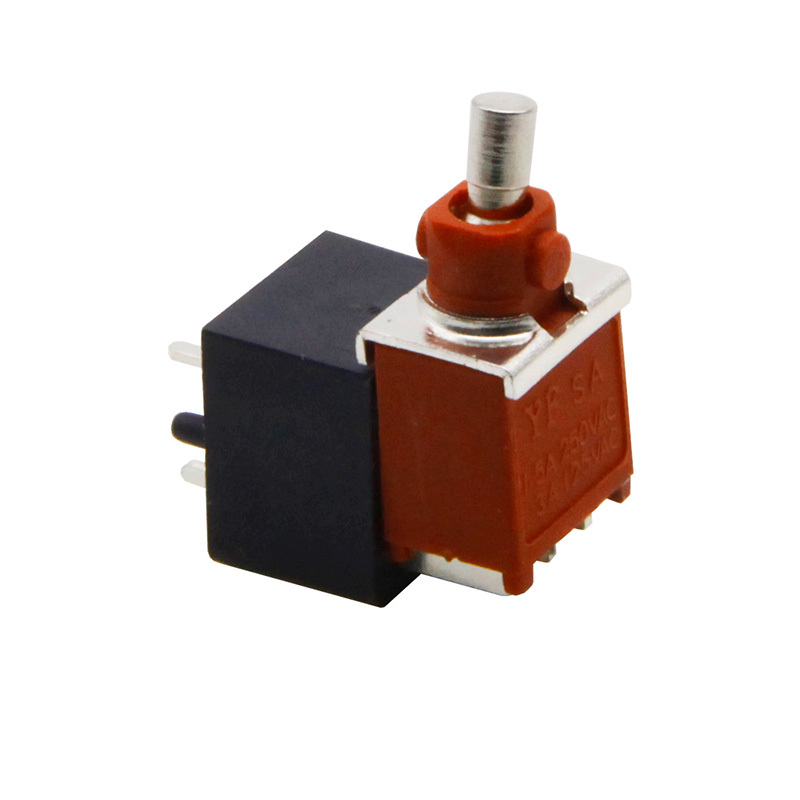

SA-0-102-007-0007-RS(Two gears)

SA-0-102-007-0007-RS(Two gears) SA-0-102-007-0007-RS(Two gears) SA-0-102-007-0007-RS(Two gears) SA-0-102-007-0007-RS(Two gears)

Technical characteristics

1. Specification: 3A 125VAC; 1.5A 250VAC 2. Contact resistance: ＜ 20m Ω 3. Insulation resistance: 500VDC, not less than 1000m Ω 4. Withstand voltage: 1000VAC, 1 minute 5. Working temperature: -30 ° C~+125 ° C 6. Electrical life: over 10000 cycles 7. Mechanical life: over 40000 times

Material

Base: PPA (UL94V-0) Handle: brass, chrome plated Shell: PA66 Bracket: brass/iron, silver plated Contact piece/terminal: Copper alloy, silver or gold plated
